Just to be clear…. I still stand by my original processing technique outlined here in FR years ago which does not use the pre wet and has slightly more agitation than the technique outlined above (metal reels and tanks only for the older process). If the film and agitation technique is perfect without a pre wet then go for it but I have found most modern films do benefit from the pre wet… the only downside is developer longevity and about 1/3 stop loss in speed.
Running a test with my new ORTHOTOPOSCOPE SS camera (6×12) and a non optimized pinhole of around F70 (optimized is around F130 for the 25mm focal length). I am looking at the following films with EI from approx 100-1600 all in developers I have found that works best for maximum compensation and best overall tonality with each specific film. Reciprocity corrections were kept to just a gerous doubling to time— with this type of camera and work I like to keep it simple if possible. Exposures ranged from 1 second to 30 seconds all handheld as that is my standard way of shooting with a pinhole system.
400TX • Diafine
400Tmax • 510 Pyro
Delta 3200 • 510 Pyro
Fuji 400CN • C41
Portra 400 • C41
CineStill 800T • C41
All test results will be converted to B&W as that is my current need with these materials.
UPDATE: So I’ve looked at the film and I am very drawn to the Porta 400 and VERY drawn to the Cinestill 800T when both are converted to B&W. The regular B&W film was amazing but due to the pinhole capture I had a lot more range of possibilities in the conversion process that really helped to bring out crazy tonal separation in the two color negative materials.
So I am heading back to Paris tomorrow provided I can make it to Boston to get my flight!
On my last trip to Paris 5 weeks ago I shot with the Leica Monochrome exclusively…. on this trip it will be my Leica M4 film cameras exclusively! Hint… my next big article here on FR.
I have also been testing a lot of film and developer combinations the last 5 weeks… a lot! I really like the Bergger BRF 400+ in Caffenol CL and Caffenol CH with EI in CL out to 3200+. Rodinal provides a very crisp negative and Xtol is another good choice at 1:1. Another film I have been testing a lot is Delta 3200 processed in PMK double strength… nice range of tones and usable out to 6400 and perhaps 12,800 with proper shadow metering. Today I am running a test looking at the Delta 3200 in PMK with 1.5 strength as at double the highlights get a bit hot at lower EI’s… I want it all- 400-6400!!!!!! Stay tuned!
Oh and the Bergger BRF400+ in PMK is around 200-400 with a beautiful tonal quality. I have heard many people compare the Bergger to Tri-X… Yes, but only if you are talking Tri-X from the 1970’s and even then it is more like XX than TX. It is very low contrast film which is a good thing for scanning and has a softer rendering then most modern films… perfect for a classic look. In Diafine it is nice but the grain needs a bit of a kick in PS with some structure and a “S” curve to add depth- in Diafine a usable EI of 1600 is not a problem.
So currently in my JOBO CPP2 I am running Diafine full strength Part A and full strength Part B for 5 minutes for all BW films at rotation setting “F” which is around 40 rpm. After part B I increase the rotation to “P” which is around 80 rpm and keep it at that for the remainder of the process. My tests have shown that times around 7+ minutes in A/B can stain some films- yet 5 minutes in A/B at 75F seems about spot on to me and perfect for most scanning applications. The 1:1 development of Diafine decreases the shadow detail at higher EI… for example at 1:1 TX dies after about EI 800 whereas with the full strength process as outlined above EI 1600+ is very solid (note: box speed at 1:1 is about perfect- for box speed). With regards to streaking…. none, full strength or 1:1. An obvious advantage to full strength is that Diafine can be used over and over again for a lot of film where as the 1:1 is a one shot developer. I have personally used Diafine (1 gal A/B) full strength for well over a year without issue…. if it becomes a bit dirty just run it through a new clean coffee filter and presto! Perfect developer ready for more film.
So my testing has confirmed that with the 1:1 dilution of Diafine in a JOBO at Rotation P you need to extend your development time to 6 minutes in part A and part B and also run at a temp around 25 C. If you choose not to, you will find that films like 400TX die after about EI 800 (shadows get a bit too thin for me) which is about a stop lower than is expected with the Diafine/ 400TX combo. If you only want box speed to say 800 with 400TX then the standard 3 minutes in A and B is fine.

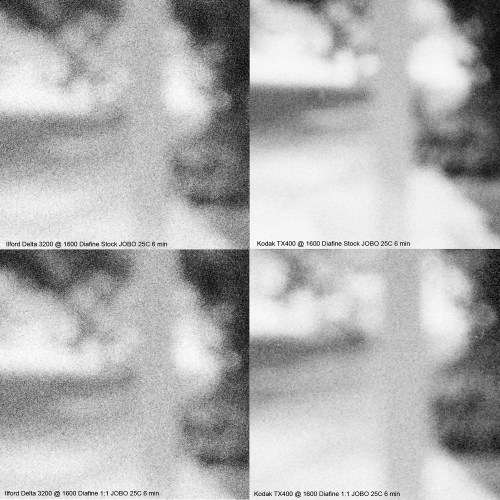

So today I ran a test to compare 1:1 and full strength Diafine also in a JOBO. Density as you would expect is a tad bit higher at the full strength but not by a lot… again I am extending the time to 6 min in A and 6 min in B. The contrast of the full strength is also a tad bit higher, but nothing a good scanner could not work with…. but the 1:1 is soooo nice.
My advice…. Diafine 1:1 at 25 C for 6 min in A and 6 min in B, rotation setting P. (Note: 1:1 with Diafine is a one shot developer!)
With regards to high speed films, Kodak TX400 works out to a usable E.I. range 1:1 (6 min A and B) from about 200/400-1600 with 3200 somewhat usable…. maybe! Ilford Delta 3200 is amazing with this developer and is nice from about 100/200 – 1600 with 3200 also quite usable in a pinch ( note: you have to love grain to love this film)! The now killed Kodak P3200 is still undergoing tests as it is still around in good supply and it looks like it will have a very solid 3200 but much more grain than the Ilford… which could be nice! I love grain!!
The Kodak 400TX has nice grain but wow the Ilford is just stunning…. The Ilford is only long term bet as of now – much lower contrast and very easy to scan across a wide range of EI. All the scans above are 100% crops from a very large 35mm scans at 3000 dpi on my Imacon Scanner (I decided not to do 6300 dpi on the scan just to save time and sharpening is off on the scanner, -120 setting).
Amazing couple of days running dozens of different developer tests all with 400TX… love the look of the grain and depth of this film! In the end I came back to an old friend but with a new twist. Diafine is back in my life in a big way! Diluted 1:1 and used as a one shot developer it is spot on in my JOBO with very nice grain, great tonality, no processing issues and best of all a usable EI from about 100-1250 (the chart shows 200-1600… I think 1600 is a bit on the edge for my works but is totally usable in a pinch. So again, in a JOBO speed is 4, temp does not really matter but I ran at 75F, Dilute part A and B 1:1… I did 3.5 minutes in each followed by a 2 min wash with water then fix (box time), clear (box time) and hang to dry…. easy as pie!
Of course an advantage of Diafine that I have written about here before is that many different films can be souped at the same time which is a huge time saver. Diafine negs are a bit flat and do requiere an “S” curve in PS to make me happy but I am now quite happy indeed. I will post links to Diafine articles I have written and a great one from a friend Sandy King from View Camera.
My suggest EI…. 800.
Viva la Revolution– Stephen
All images shot with a Leica MP with a 35MM Summicron ASPH… on Film!
as for articles here… there are a lot!!!! Just type in Diafine in the search box and enjoy!
Also please note these were just quick scans (first set) as I am leaving tomorrow for a week of shooting but the final scan (last image) is quite nice and shows the real potential for this amazing combo.
